314Ah and 500Ah+ model options

Prismatic LiFePO4 Cells for Battery Pack Assembly

Name: Sunwoda SEP-03-6840 684Ah
Brand: Sunwoda / SEVB

Vianectra supports project-based and repeat sourcing of prismatic LFP cells for battery pack manufacturers, storage brands, installers and distributors. Actual model, batch, production information, availability and packing must be confirmed before order.

View 314Ah cells View 500Ah+ cells

EVE MB56 628Ah large-format LFP cell held for size reference

Model-specific data, confirmed before order

Core parameters are referenced from the corresponding model specification. The complete specification sheet is available upon request. Actual batch, terminal configuration, production information and availability must be confirmed before order.

Cycle figures are specification test results under the stated conditions, not a cycle-life warranty.

Specification sheet available on request

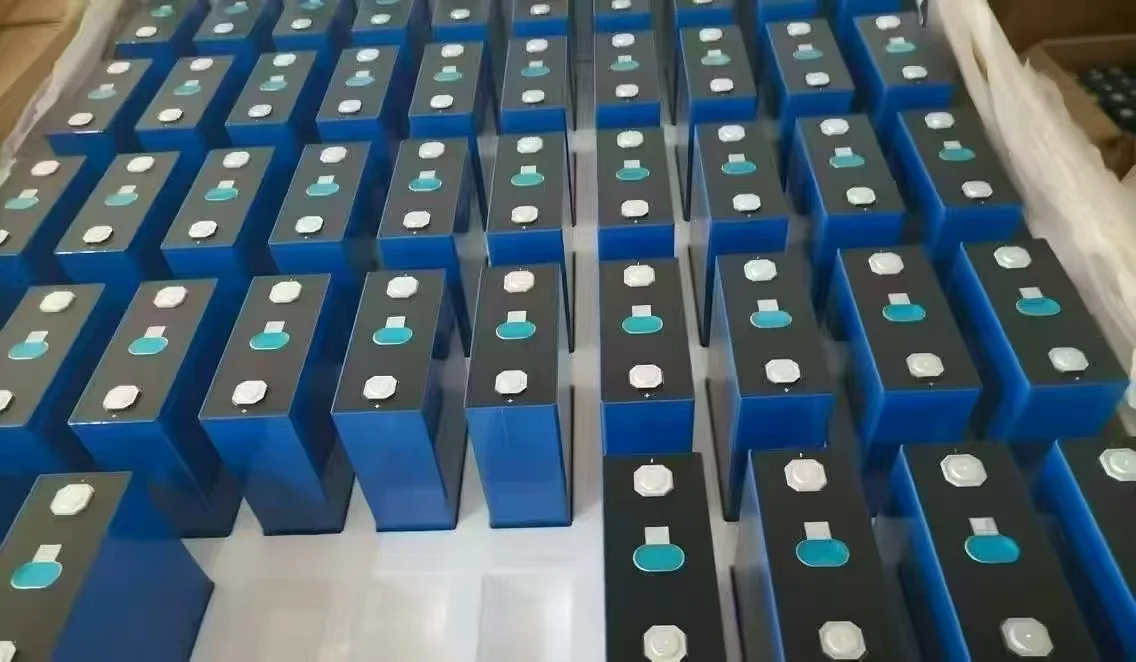

Batch of EVE MB31 314Ah prismatic LFP cells

314Ah Cells

EVE Energy

MB31

A 314Ah prismatic LFP cell option for 16S residential and commercial energy storage battery packs.

Nominal voltage: 3.2V
Nominal capacity: 314Ah
Nominal energy: 1004.8Wh
Weight: 5.6 ± 0.3kg
Dimensions: 173.7 × 71.7 × 207.2mm including terminals
Initial AC resistance: 0.18 ± 0.05mΩ
Cycle test result: 8,000 cycles to 70% SOH at 25°C and 0.5P charge/discharge under the specification test conditions.

Request Specification Get a Quote

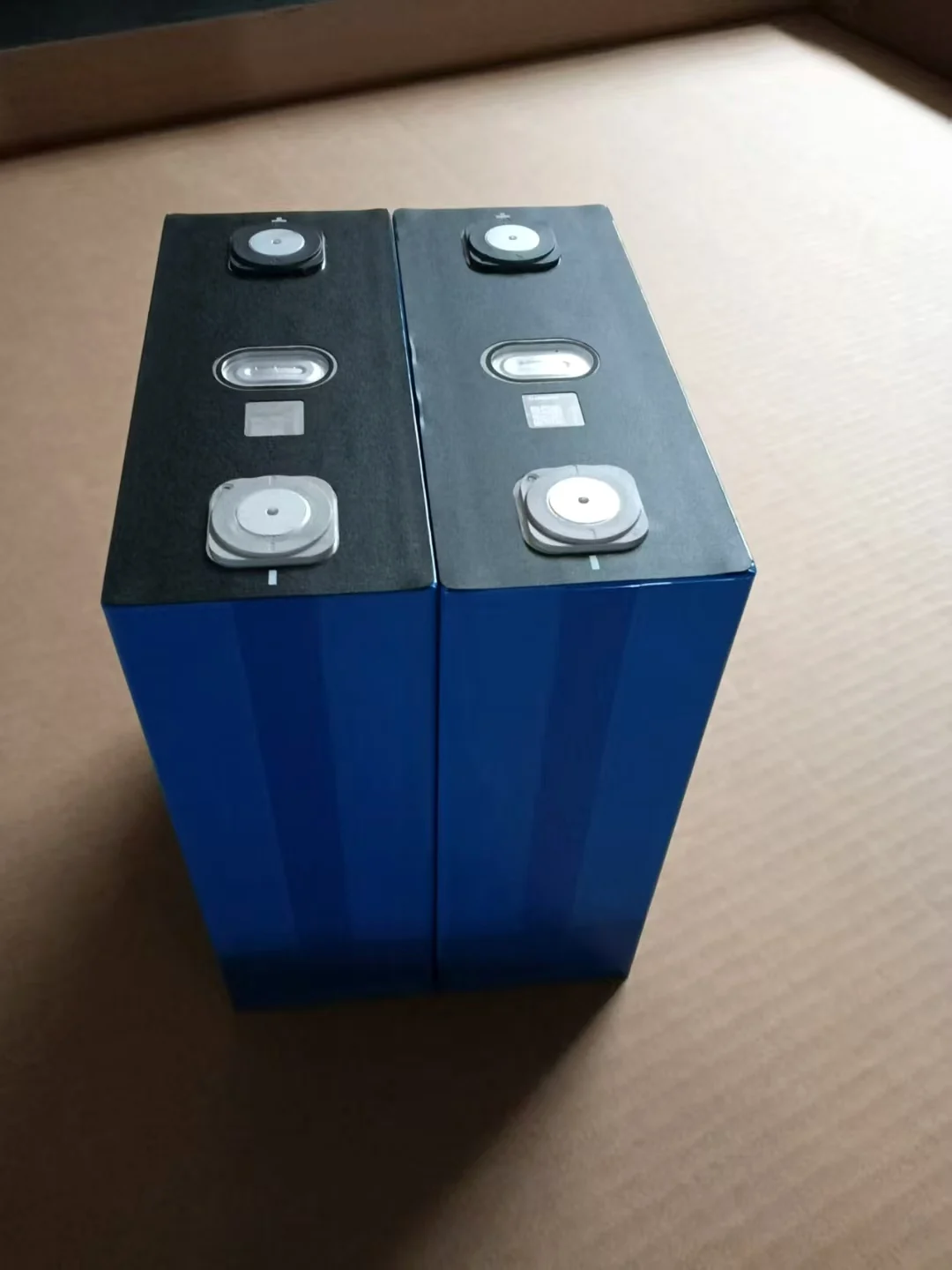

314Ah Cells

Sunwoda / SEVB

SBP-01-3140

A 314Ah prismatic LFP cell option for configurable 16S storage battery projects and repeat sourcing.

Nominal voltage: 3.2V
Nominal capacity: 314Ah
Nominal energy: 1004.8Wh
Weight: 5.6 ± 0.1kg
Dimensions: 174.30 × 71.53 × 206.90mm including terminals
Impedance: ≤0.23mΩ at 1kHz and 50% SOC
Cycle test result: ≥6,000 cycles to 80% nominal capacity at 25 ± 2°C, 0.5CP/0.5CP and 300kgf clamp force under the specification test conditions.

Request Specification Get a Quote

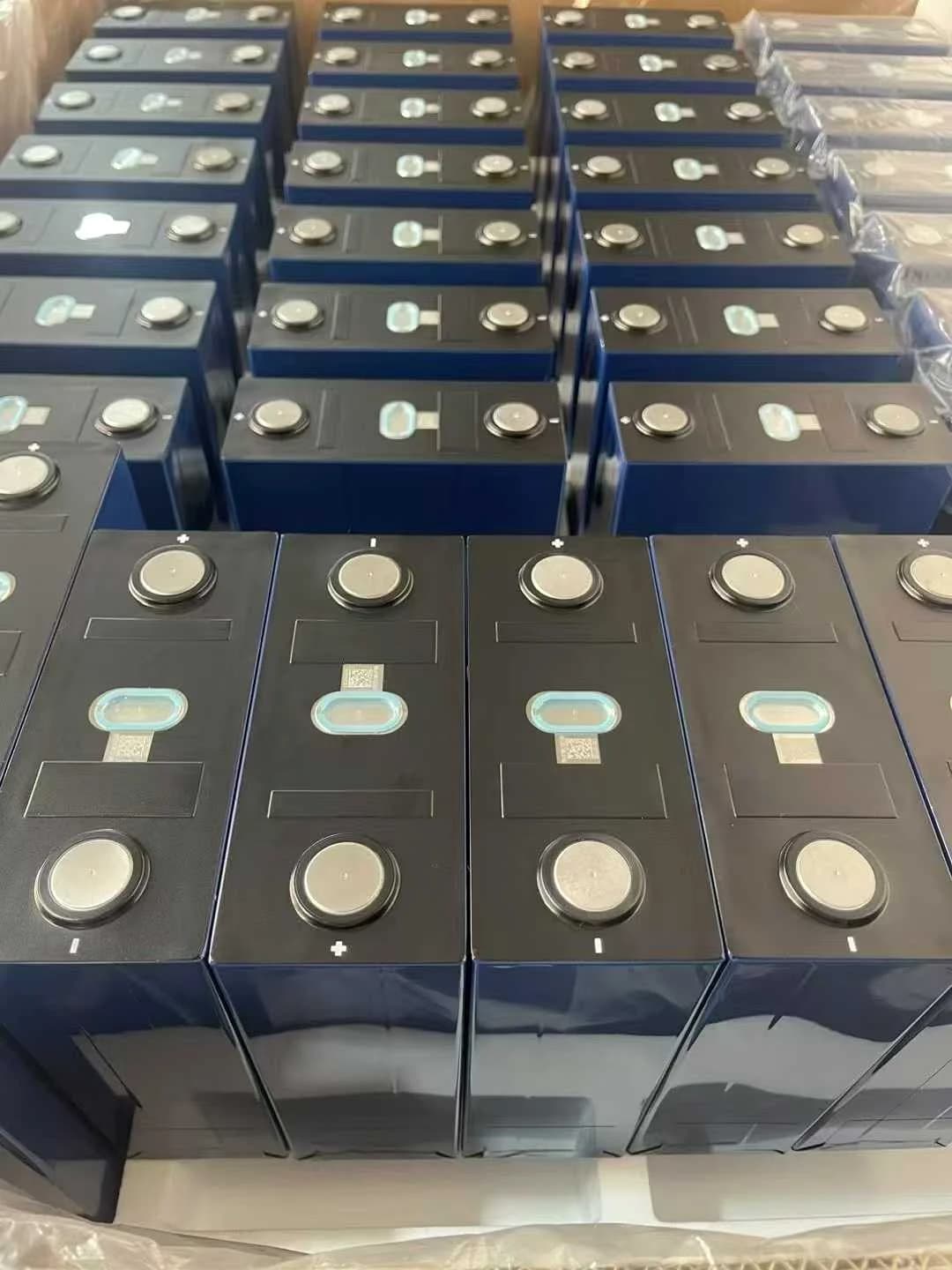

314Ah Cells

CALB

L173F314A

A model-specific 314Ah cell option for local battery assembly and B2B repeat-purchase planning.

Nominal voltage: 3.2V
Nominal capacity: 314Ah
Nominal energy: 1004Wh
Weight: 5.60 ± 0.15kg
Dimensions: 174.4 × 71.4 × 207.0mm including terminals
AC resistance: ≤0.35mΩ at 40% SOC, room temperature and 1000Hz
Cycle test result: ≥6,000 cycles to 80% SOH at 25°C and 0.5P charge/discharge under the specification test conditions.

Request Specification Get a Quote

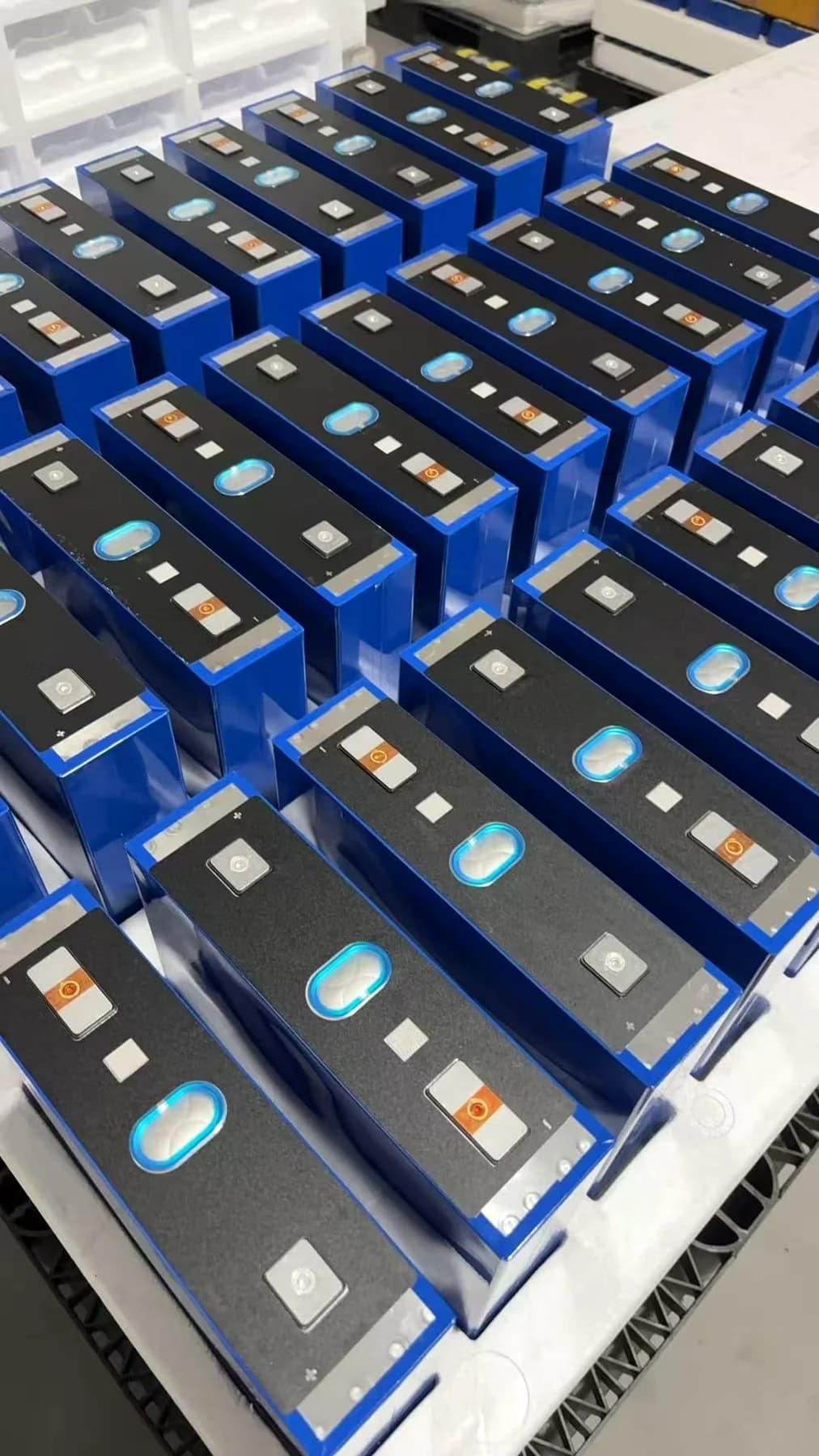

Large-Capacity Cells

CATL

CBLC0

A large-format 530Ah LFP cell for project-based energy storage cell sourcing.

Nominal voltage: 3.2V
Nominal capacity: 530Ah
Nominal energy: 1696Wh
Weight: 9.4 ± 0.5kg
Dimensions: 274.6 × 73.1 × 212.8mm; thickness under 300kgf
Initial resistance: 0.15 ± 0.05mΩ at approximately 23% SOC
Cycle test result: Mean approximately 10,000 cycles to 70% SOH at 25 ± 2°C, 300 ± 20kgf preload, 2.0–2.5mm gap and 0.5P charge/discharge under the specification test conditions.

Request Specification Get a Quote

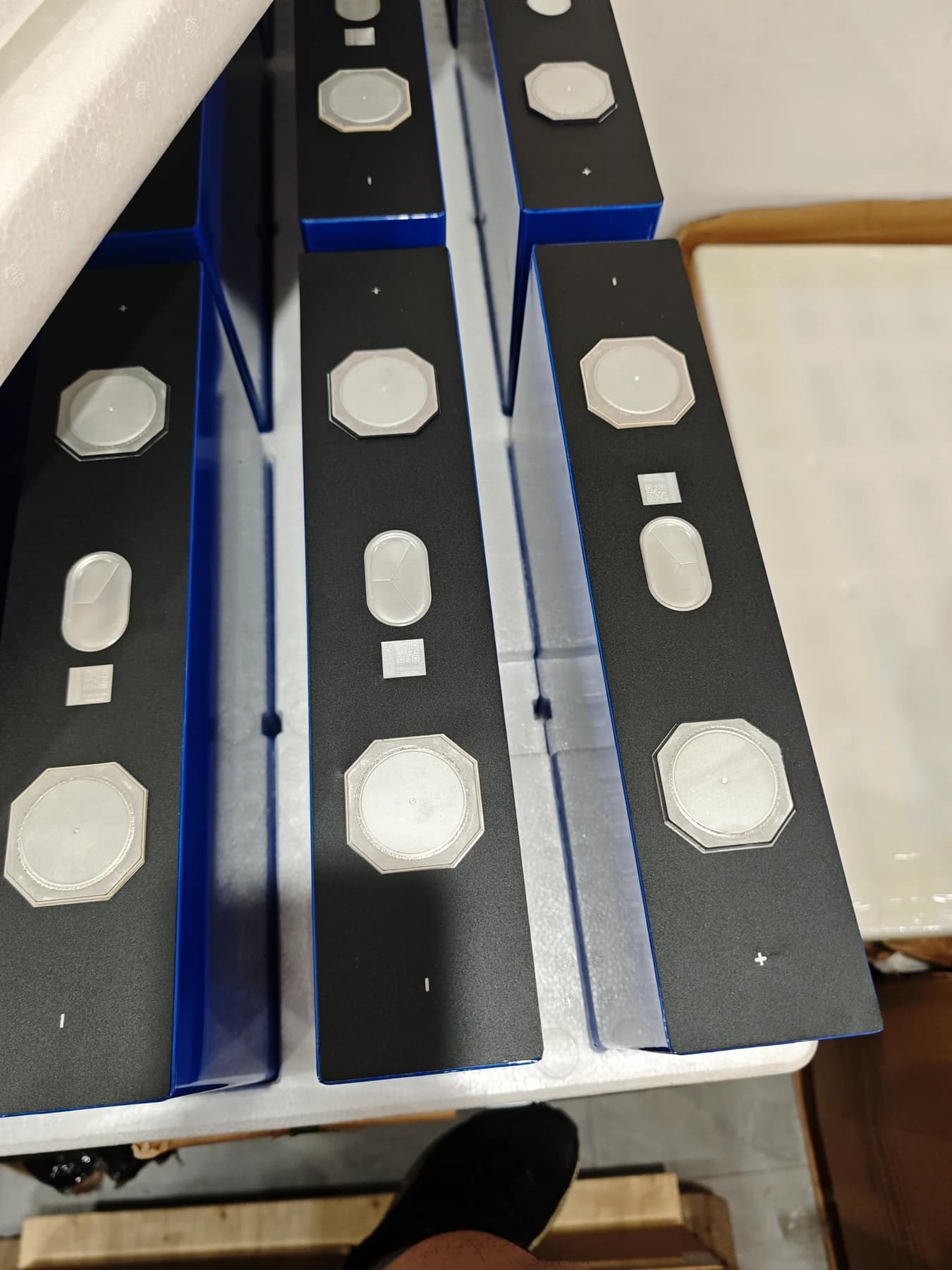

Multiple EVE MB56 628Ah prismatic LFP cells

Large-Capacity Cells

EVE Energy

MB56

A 628Ah large-capacity cell option for energy storage projects that require a larger-format prismatic cell.

Nominal voltage: 3.2V
Nominal capacity: 628Ah
Nominal energy: 2009.6Wh
Weight: 11.5 ± 0.3kg
Dimensions: 352.3 × 71.7 × 207.2mm including terminals
Initial AC resistance: 0.10 ± 0.05mΩ
Cycle test result: 8,000 cycles to 70% SOH at 25°C under the specification test conditions.

Request Specification Get a Quote

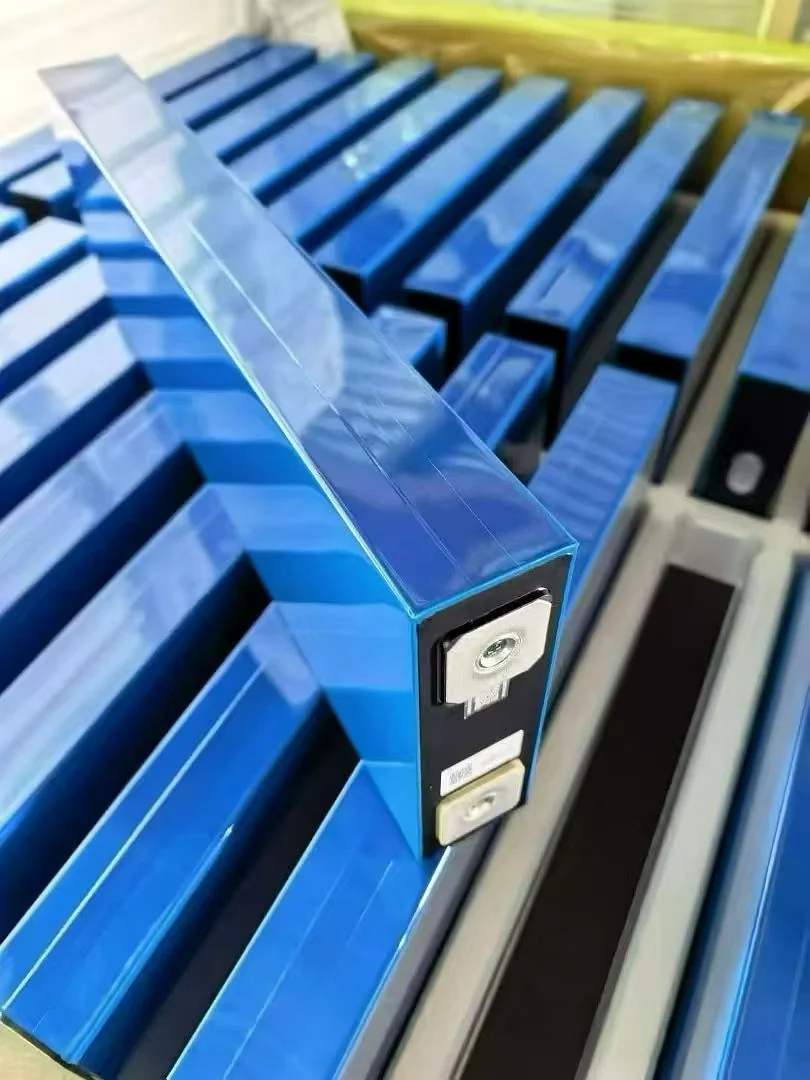

Batch of long-format Sunwoda 684Ah LFP cells

Large-Capacity Cells

Sunwoda / SEVB

SEP-03-6840

A long-format 684Ah prismatic LFP cell for confirmed large-capacity energy storage configurations.

Nominal voltage: 3.2V
Nominal capacity: 684Ah
Nominal energy: 2188.8Wh
Weight: 11.12 ± 0.15kg
Dimensions: 501.5 × 175.5 × 55.5mm; thickness under 500kgf
Impedance: ≤0.2mΩ at 1kHz and 30% SOC
Cycle test result: ≥8,000 cycles to 70% nominal capacity at 25 ± 2°C, 0.25P/0.25P and 500kgf clamp force under the specification test conditions.

Request Specification Get a Quote

Manufacturer references: Manufacturer names identify the referenced cell models and do not imply an official authorization or affiliation with Vianectra. No card claims Grade A status, guaranteed stock, certification availability or a cycle-life warranty.

Before the quotation

Confirm the details that vary by model and batch

Published core parameters help identify the model. Commercial and order-specific details still require confirmation.

Model and application

Required capacity and cell model
Battery pack configuration
Sample evaluation or repeat-purchase plan

Batch and terminals

Actual batch information
Terminal configuration
Production information where confirmed

Order and packing

Quantity
Destination country, city and port
Packing and delivery proposal

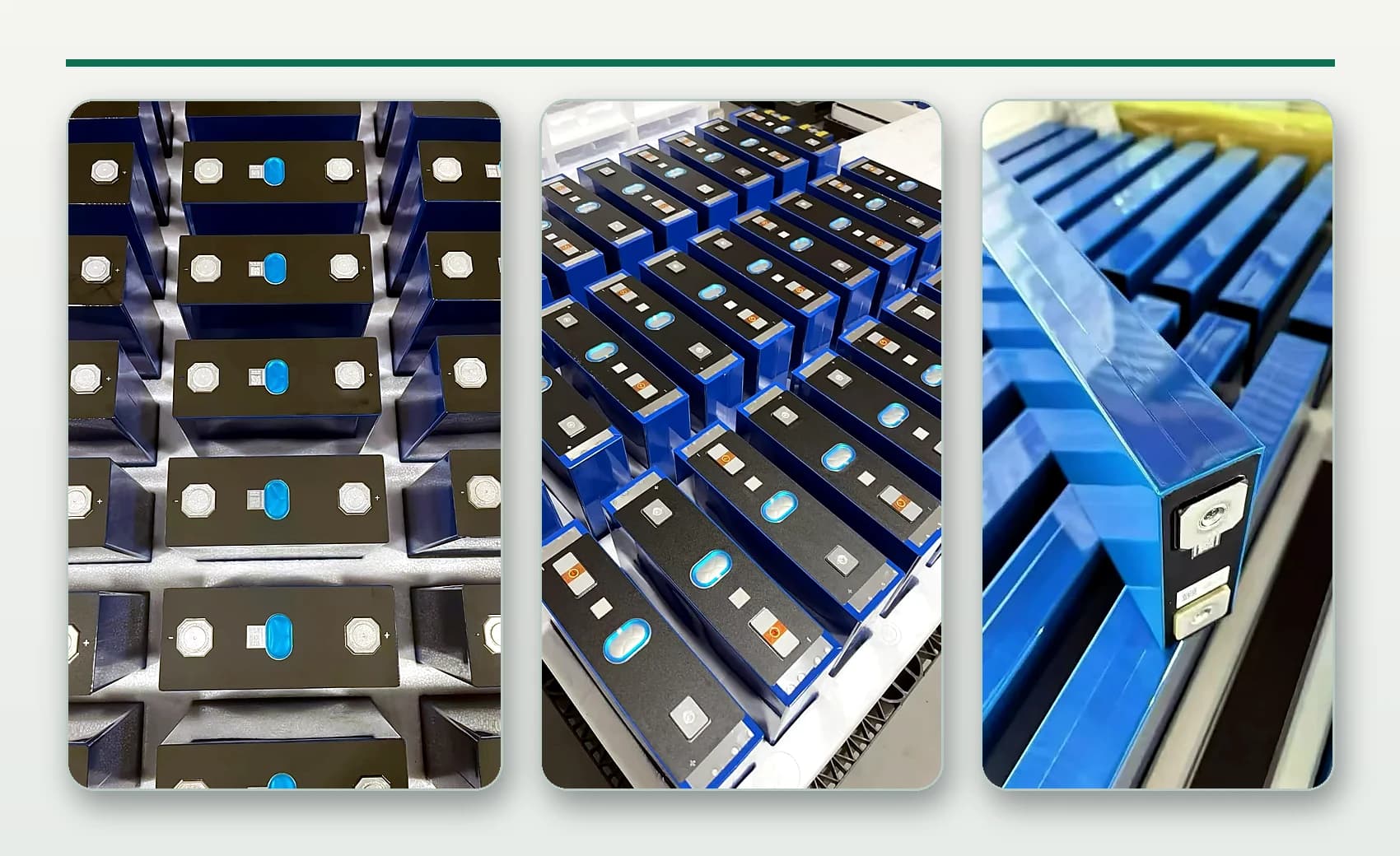

Real visual references

Cell batches, terminals and spot-check scenes

The images show actual product appearance and handling references. A single test-scene reading is not generalized into a batch-wide guarantee.

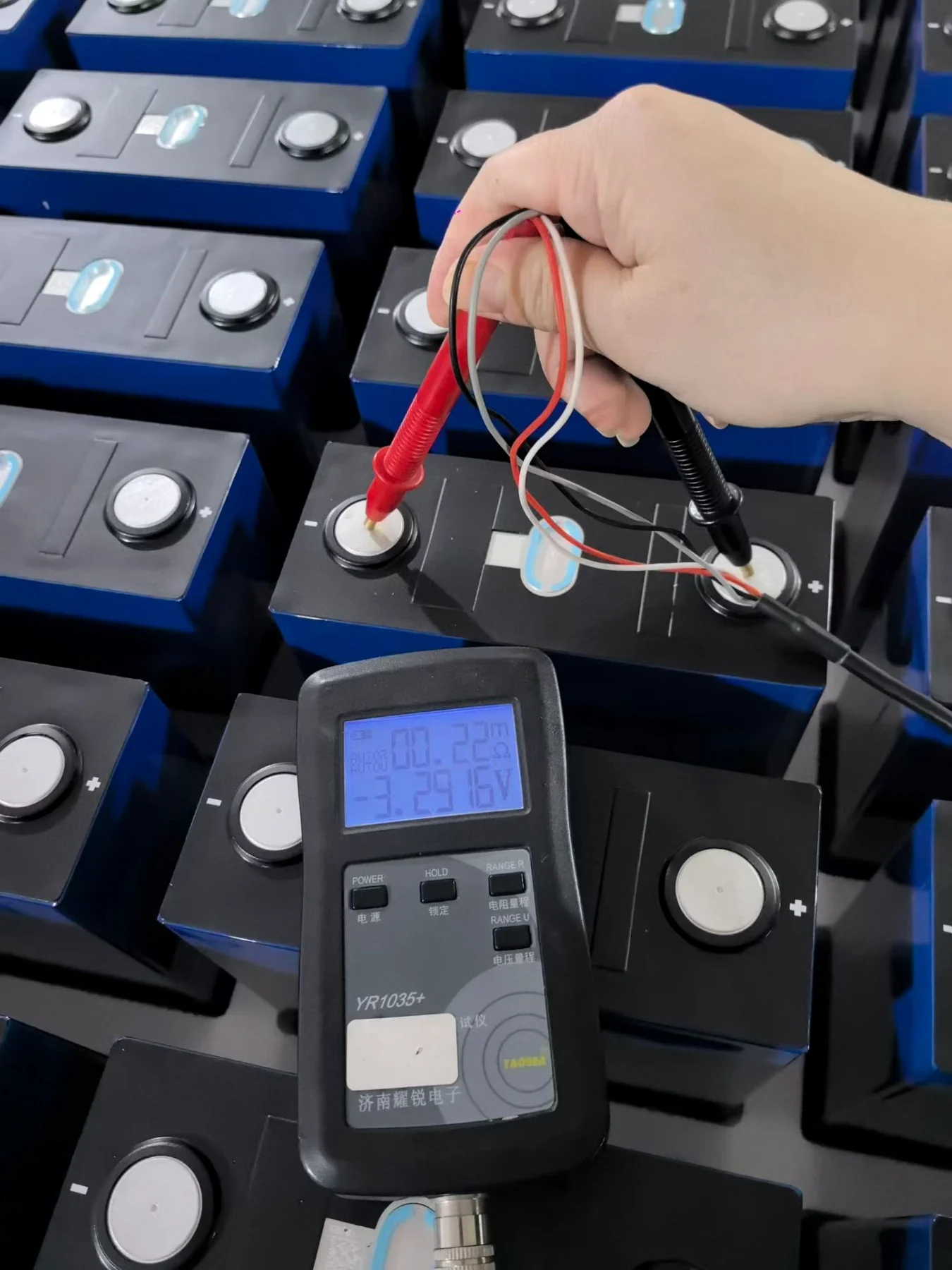

Spot voltage and resistance check on CALB 314Ah cells — CALB 314Ah spot-check scene; displayed values are not a batch guarantee

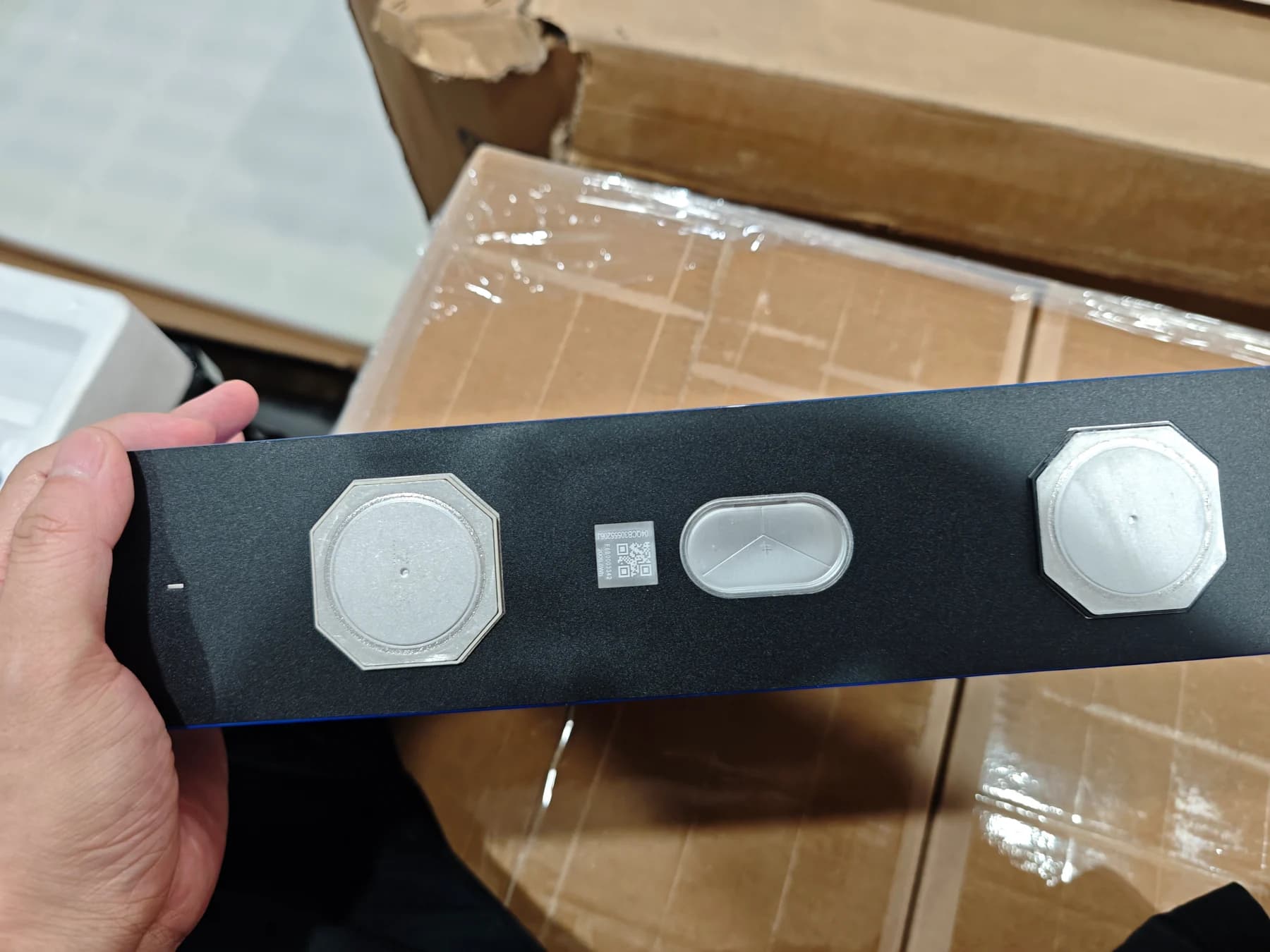

Terminal and safety-vent closeup of EVE MB56 628Ah cell — EVE MB56 terminal and safety-vent reference

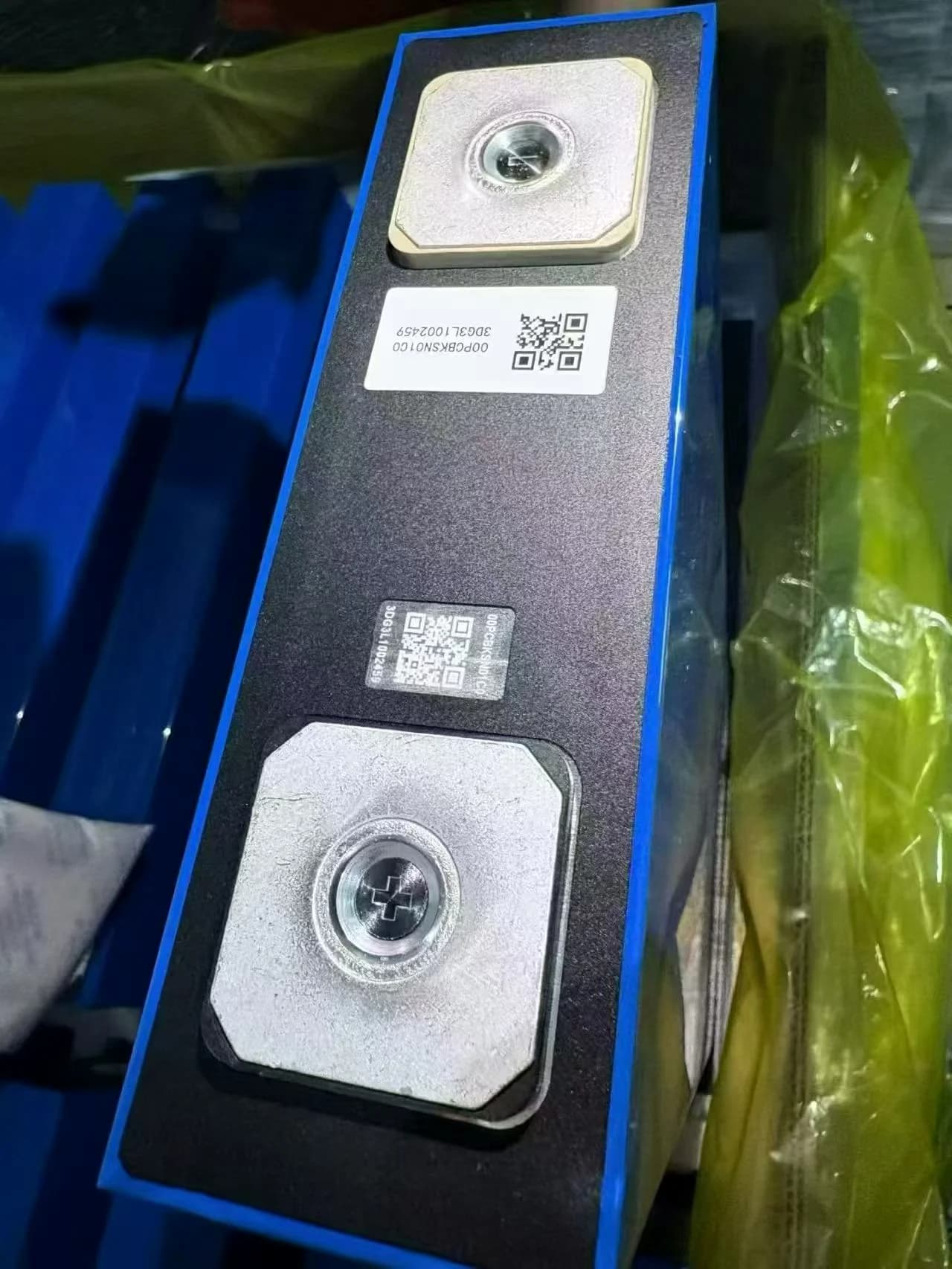

Terminal and identification closeup of Sunwoda 684Ah LFP cell — Sunwoda 684Ah terminal and identification reference

Project-based sourcing

Need a confirmed LFP cell model for your next project?

Share the cell model, quantity, pack configuration and destination. Joey can coordinate the model specification, batch questions and packing proposal before quotation.
