Battery pack assemblers
Teams building 16S energy storage batteries locally and coordinating the enclosure, BMS, cells and assembly accessories.
16S energy storage assembly route
51.2V 314Ah Battery Pack Assembly Kit for Local Battery Production
The standard configuration is designed around a 16S 314Ah LFP battery pack, providing approximately 51.2V and 16.08kWh nominal energy. The kit can include the floor-standing enclosure, JK BMS, LCD display, breaker, busbars, wiring, insulation materials, terminals and assembly accessories. Exact components are confirmed before quotation.
16SStandard cell configuration
≈51.2VNominal pack voltage
≈314AhNominal pack capacity
≈16.08kWhNominal pack energy
Who this kit is for
A configurable sourcing option for local battery production
The kit is designed for B2B customers that have local assembly capability and need the main mechanical, electrical and cell components coordinated before shipment.
Solar and storage businesses
Installers and storage brands that need inverter-specific communication review before selecting the BMS configuration.
Distributors and repeat buyers
B2B buyers evaluating one set, developing a second source or planning repeat purchasing after configuration approval.
Standard configuration
Core components confirmed as one project
The component list is a starting point. Exact enclosure finish, BMS model and current, display, breaker, cables and cells are confirmed before the quotation is issued.
- Floor-standing rolling enclosure
- 16S configuration for 314Ah prismatic cells
- JK BMS
- LCD display
- Breaker
- Busbars
- Wiring and communication cables
- Insulation materials
- Terminals and required assembly accessories
Configuration rule: exact JK BMS model and current must be confirmed before quotation. Components shown in photos are product references, not a universal fixed bundle.
- Standard cell quantity
- 16 cells
- Nominal voltage
- Approximately 51.2V
- Nominal capacity
- Approximately 314Ah
- Nominal energy
- Approximately 16.08kWh

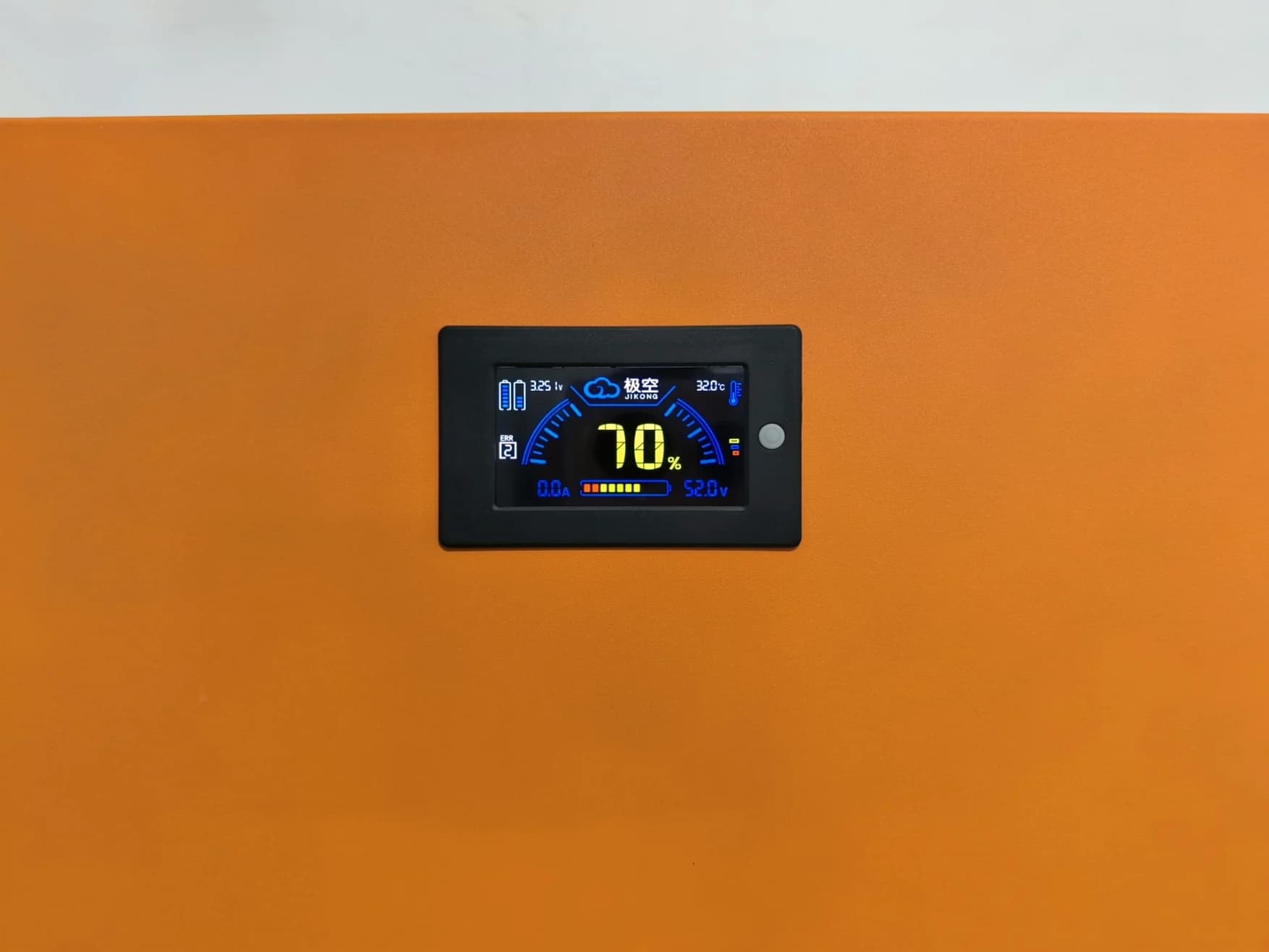

- Standard display
- 3.2-inch
- Optional display
- 4.3-inch may be available
- Breaker
- 2P 250A where confirmed
- Communication
- CAN and RS485 may be included depending on configuration
- BMS
- Exact JK BMS model and current confirmed before quotation
Cell brand options
Choose a model-specific 314Ah cell route
Cell choice is confirmed by formal model parameters, required quantity, batch information, terminal configuration, packing and project availability.
EVE Energy
MB31 314Ah
3.2V, 314Ah and 1004.8Wh nominal energy per cell. Specification test conditions are stated with any cycle result.
Sunwoda / SEVB
SBP-01-3140
3.2V, 314Ah and 1004.8Wh nominal energy per cell, with model-specific impedance and cycle test conditions.
CALB
L173F314A
3.2V, 314Ah and 1004Wh nominal energy per cell, based on the corresponding formal model specification.
Brand names identify referenced cell models only and do not imply official authorization or affiliation with Vianectra. Actual batch and availability must be confirmed before order.

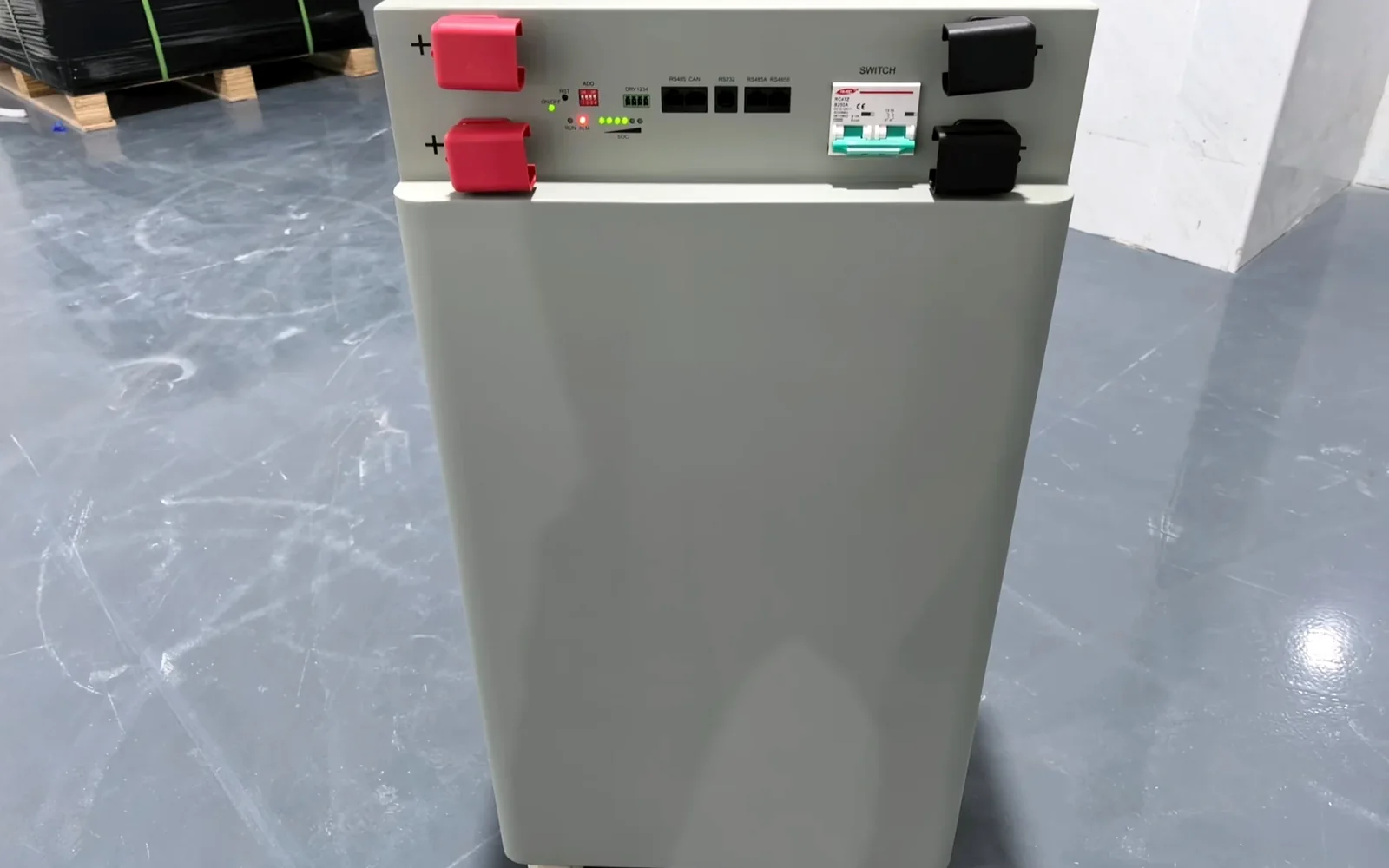

Enclosure and internal layout
A floor-standing format organized for sixteen cells
The rolling enclosure is designed around a 16S prismatic-cell layout. Internal clearances, compression components, insulation, busbars and wiring depend on the confirmed cell and kit configuration.
- White and orange enclosure references are shown
- Internal cell layout is confirmed against the selected 314Ah model
- Busbars, sense wiring and insulation are included where specified
- The exact enclosure and accessory list is recorded in the quotation

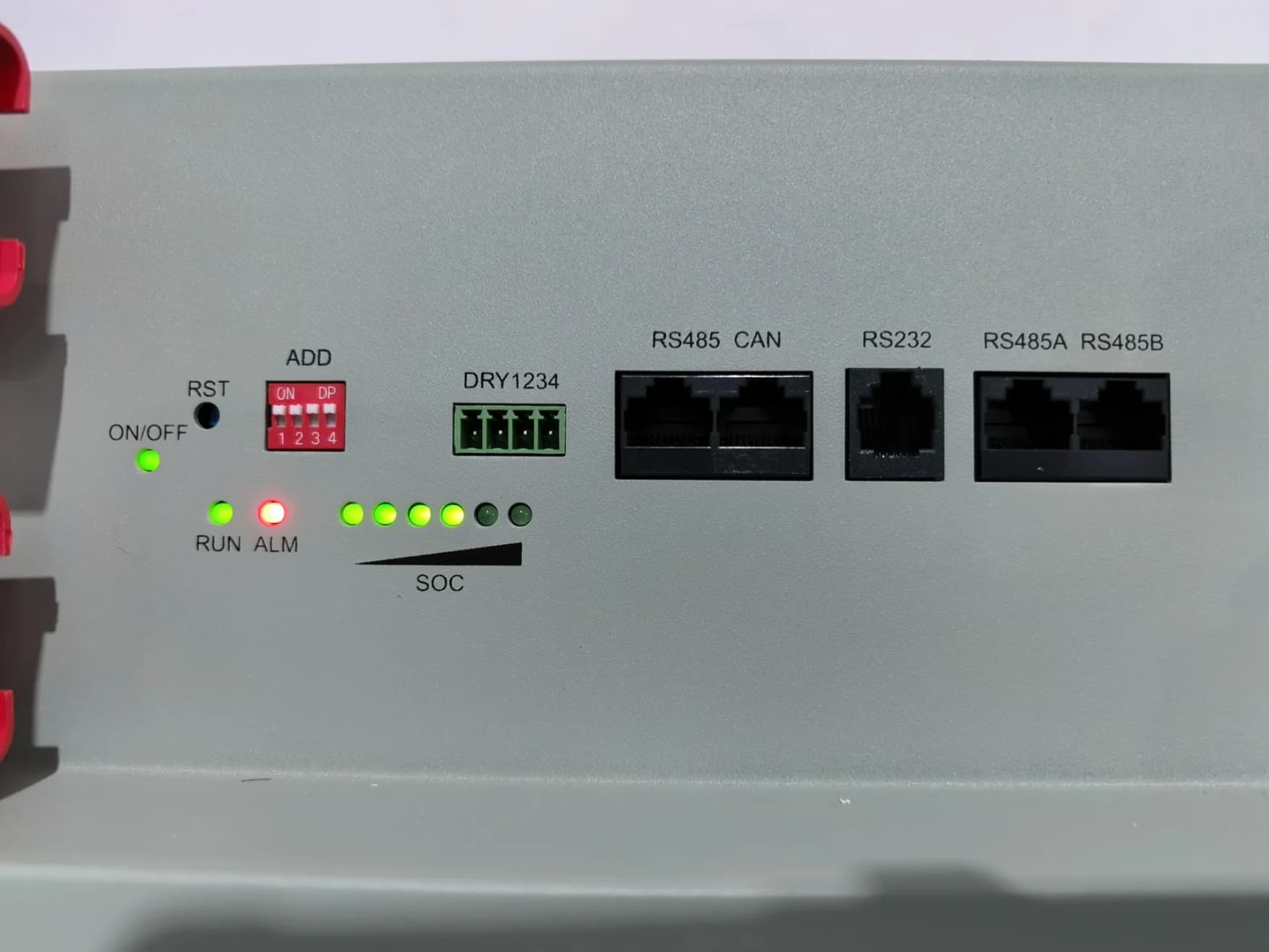

JK BMS and communication interfaces
Confirm the inverter before confirming the BMS
Communication interfaces may include CAN and RS485 depending on the selected configuration. Display format, BMS current and communication protocol must be checked for the actual project.
Compatibility: Inverter communication compatibility must be confirmed against the specific inverter model and BMS configuration.
Combined packing options
Coordinate cells, enclosure and accessories for the shipping plan
Cells can be placed inside the enclosure for consolidated packing when the confirmed shipping plan allows it. This depends on the cell model, enclosure, accessories, quantity, handling requirements and transport proposal.
Final packing methods depend on the product configuration, quantity and shipping plan.
Information required before quotation
Send the details that change the configuration
Clear project information reduces assumptions and helps the quotation reflect the actual BMS, cell, enclosure and destination requirements.
Product scope
- Empty enclosure, complete kit, or cells plus kit
- Preferred cell brand and capacity
- Required BMS current
System information
- Inverter brand and model
- Display preference if relevant
- Whether cells should be packed inside the enclosure
Order and destination
- Quantity
- Destination country and city
- Destination port if available

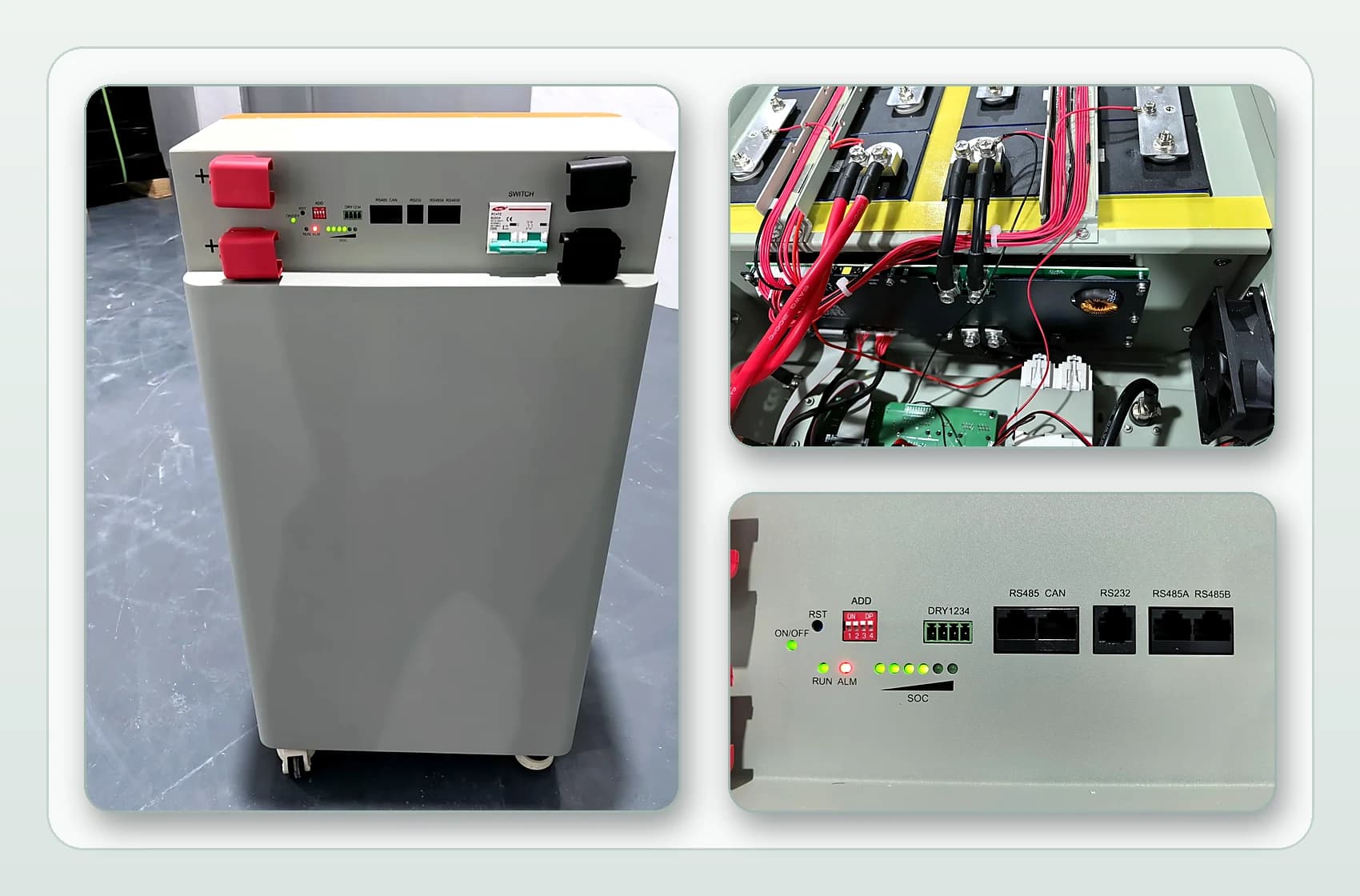

Real product references
Assembly kit and order preparation photos
These images document physical enclosures, a 16-cell layout, wiring, BMS components, interfaces and displays. They are not evidence of Vianectra factory ownership.
Frequently asked questions
Assembly kit FAQ
What is included in the assembly kit?
The confirmed kit can include a floor-standing rolling enclosure, JK BMS, LCD display, breaker, busbars, wiring and communication cables, insulation materials, terminals and required assembly accessories. Exact components are listed in the quotation.
Can I order one set for evaluation?
One complete set may be available for sample evaluation, subject to configuration and quotation confirmation. This is not a fixed stock promise.
Can the cells be packed inside the enclosure?
Cells can be placed inside the enclosure for consolidated packing when the confirmed product configuration and shipping plan allow it. The final method is reviewed before quotation.
Can I choose a different 314Ah cell brand?
Yes. EVE MB31, Sunwoda SBP-01-3140 and CALB L173F314A are among the model-specific 314Ah options. The actual model, batch information, terminals, packing and availability must be confirmed.
Does the kit communicate with my inverter?
Inverter communication compatibility must be confirmed against the specific inverter model and BMS configuration. The kit is not presented as universally compatible with every inverter.
Can I request the specification sheet?
Yes. The relevant specification sheet is available on request. It is shared through the quotation conversation and is not offered as a public website download.
Project-based sourcing
Ready to confirm a 51.2V 314Ah assembly kit?
Send your cell preference, inverter model, BMS current, quantity and destination so the kit and packing plan can be reviewed before quotation.
